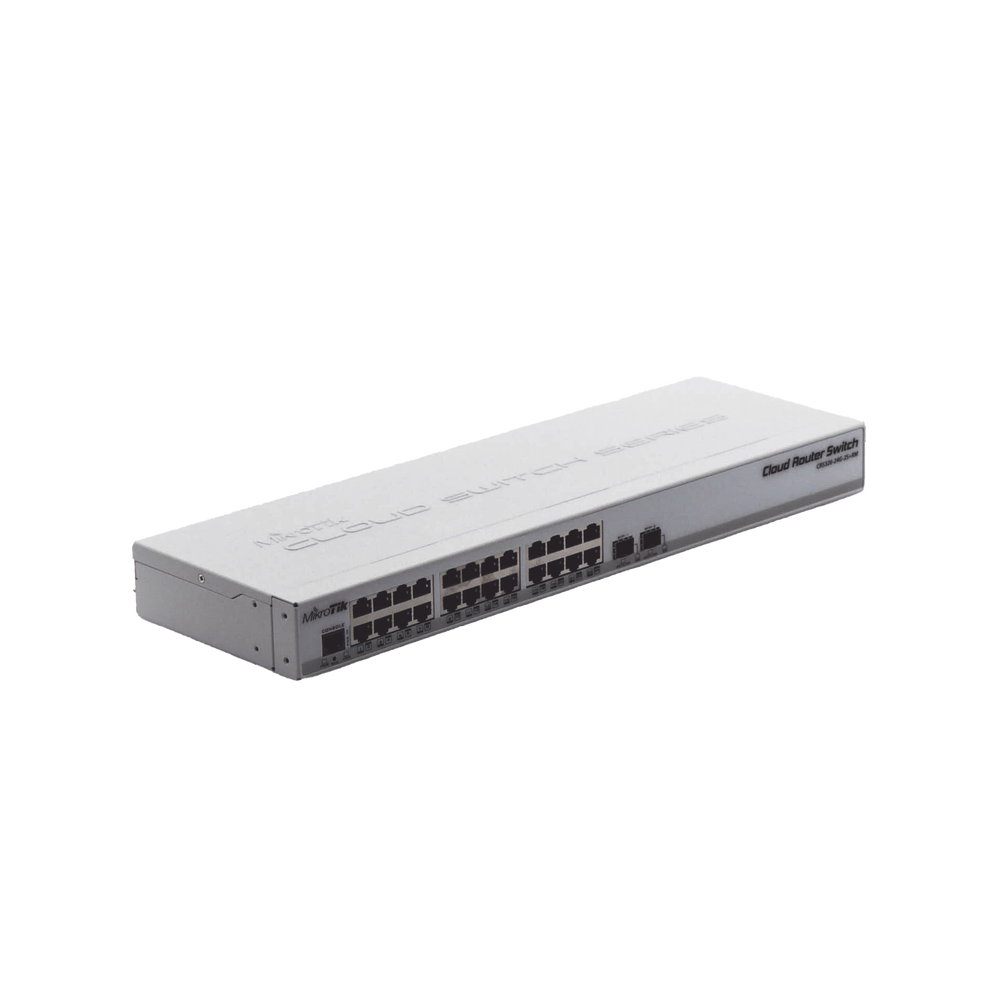

Switch Sistema Operativo Dual 24 Puertos Gigabit Ethernet y 2 Puertos SFP+ - CRS326-24G-2S+RM - CRS326-24G-2S+RM
SwOS/RouterOS operacion de los dos tipos de sistemas operativos de Mikrotik, Switch Gigabit Ethernet de 24 puertos con dos puertos SFP+, conectividad de velocidad de cable con varias características de conmutación nuevas.
Tiene la función de 'arranque dual' que le permite elegir qué sistema operativo prefiere usar, RouterOS o SwOS. Si prefiere tener un solo sistema operativo simplificado con más características específicas de interruptor, use SwOS. Si está acostumbrado a Winbox y le gustaría poder utilizar el enrutamiento y otras características de Capa 3 en algunos puertos de su CRS, inicie y use RouterOS. Puede seleccionar el sistema operativo deseado desde RouterOS, desde SwOS o desde la configuración del cargador RouterBOOT.
Le brinda todas las funciones básicas para un conmutador administrado, y más: permite administrar el reenvío de puerto a puerto, aplicar filtro MAC, configurar VLAN, duplicar el tráfico, aplicar limitación de ancho de banda e incluso ajustar algunos campos de encabezado MAC e IP. La caja SFP admite módulos de 1.25 Gb SFP y 10 Gb SFP+.
Specifications
| Details | |
|---|---|
| Product code | CRS326-24G-2S+RM |
| Architecture | ARM 32bit |
| CPU | 98DX3236A1-BTD4C000 |
| CPU core count | 1 |
| CPU nominal frequency | 800 MHz |
| Dimensions | 440 x 144 x 44 mm |
| License level | 5 |
| Operating System | RouterOS / SwitchOS |
| Size of RAM | 512 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| Tested ambient temperature | -40°C .. +60°C |
Powering
| Details | |
|---|---|
| Max Power consumption | 24W |
| PoE in | Passive PoE |
| PoE in input Voltage | 10-30 V |
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| DC jack input Voltage | 10-30 V |
Ethernet
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 24 |
Fiber
| Details | |
|---|---|
| SFP+ ports | 2 |
Peripherals
| Details | |
|---|---|
| Serial port | RJ45 |
Switching results
| CRS326-24G-2S+RM | |||||||
|---|---|---|---|---|---|---|---|
| Mode | Configuration | 64 byte | 512 byte | 1518 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Switching | Non blocking Layer 2 throughput | 65,476.2 | 33,523.8 | 10,338.3 | 42,345.9 | 3,576.1 | 43,427.8 |
| Switching | Non blocking Layer 2 capacity | 65,476.2 | 67,047.6 | 10,338.3 | 84,691.7 | 3,576.1 | 86,855.7 |
| Switching | Non blocking Layer 1 throughput | 65,476.2 | 44,000.0 | 10,338.3 | 44,000.0 | 3,576.1 | 44,000.0 |
| Switching | Non blocking Layer 1 capacity | 65,476.2 | 88,000.0 | 10,338.3 | 88,000.0 | 3,576.1 | 88,000.0 |
Ethernet test results
| CRS326-24G-2S+RM | 98DX3236A1 all port test | ||||||
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
